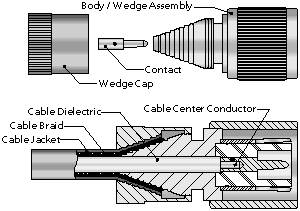

Wedge-Eze Cable Attachment (for Flexible Cable)

This unique attachment system provides very fast assembly and is field replaceable.

The cable is stripped, and the connector contact soldered to the center conductor. The prepared cable is pushed into the body assembly, and the wedge flares the braid. The plastic wedge cap is pushed forward over the cable braid, where it locks into place.

The cap can be assembled with an inexpensive hand tool or using automated equipment for large production runs. The plastic caps can be supplied in a variety of colors for identification.
