Stripline Receptacles (Top Mount)

Used to transmit signal from a strip transmission line. Uses a square flange, or a round flange with accommodation for 6 to 8 mounting holes.

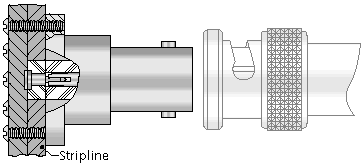

A male pin with a turret head is connected to the signal strip, and the connector with socket contact is mounted over it.

Also available as in right angle configuration, with plug interface, or as cable terminations to feed signal directly into a coaxial cable.
