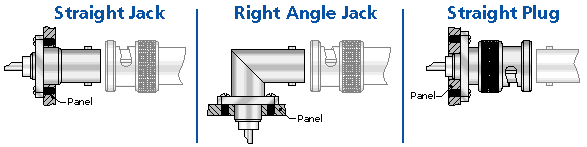

Panel Mounted Receptacles

Used to transmit signal from internal circuitry through a panel, using a flange with two to four holes to accommodate mounting screws or bolts. Best suited for use with thin panels.

Right angle types are used in applications requiring a low profile, or to avoid bending cable.
