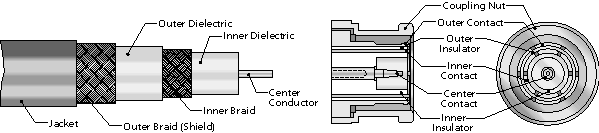

Triaxial Cable and Connector Construction

Similar to coaxial construction, but with an additional layer of dielectric and braid shield.

The connector has an additional insulator and outer contact to match the intermediate cable dielectric and braid.
