Snap-On Mating

Snap-on mating is used where a quick mating and unmating action is desired, or where the application does not have space to allow for turning a coupling nut.

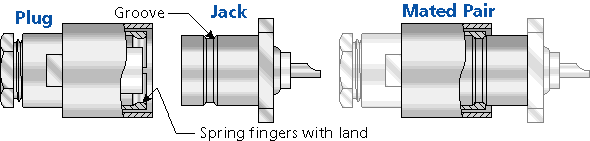

They are mated with a straight push, and the spring-loaded land within the plug snaps into the groove on the jack to minimize the possibility of accidental unmating by pulling on the cable.
