QM Series Connectors

Large , high-voltage connectors with quick-lead threads for fast mating and unmating.

Similar to LC connectors in performance.

Impedance: 50 ohms.
Frequency range: DC–1 GHz.

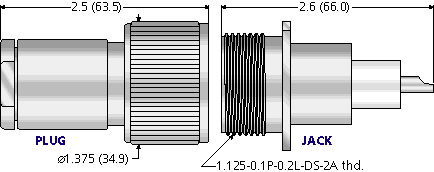

Dimensions in inches (millimeters).
Drawing is approximately 120% of actual size for clarity.

No online catalog information available at this time; please contact factory for product information.
