M39012/24 BNC Bulkhead Jack Receptacles (Hermetically Sealed)

M39012/24 connectors are straight BNC bulkhead jack receptacles, with hermetic seals and several mounting variations. They have silver-plated bodies and gold-plated contacts.

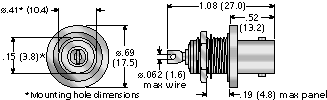

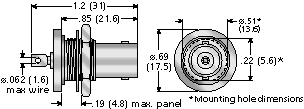

Figure 1 Figure 2
M39012 P/N Description Automatic P/N Figure
M39012/24-0001 Bulkhead jack, hermetic seal, rear mount 10-50000-001 1
M39012/24-0002 Bulkhead jack, hermetic seal, front mount 10-49001-001 2
Click here to go back to the main MIL-PRF-39012 page.
