QDL Series Connectors


Large , high-voltage connectors with push-pull mating and unmating, incorporating a locking-ball mechanism, similar to that used on air line couplings.

QDL connectors are a quick-connect and disconnect version of LC and LT.

Designed to MIL-C-18867 requirements.

Impedance: 50 ohms.
Frequency range: DC–1 GHz.

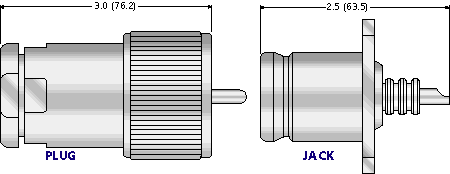

Dimensions in inches (millimeters).
Drawing is approximately 120% of actual size for clarity.
No online catalog information available at this time; please contact factory for product information.
