LT Series Connectors


Large, very high-voltage connectors with threaded mating, designed to MIL-PRF-39012 requirements.

Similar in size to LC series, but not intermateable.

Impedance: 50 ohms
Voltage rating: 5,000 V DC.
Frequency range: DC–2.5 GHz.

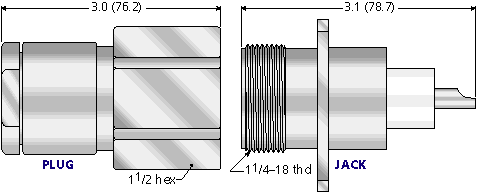

Dimensions in inches (millimeters).
Drawing is approximately 120% of actual size for clarity.
