HN Series Connectors


Medium-large, high-power connectors with threaded mating, designed to MIL-DTL-3643 and MIL-PRF-39012 requirements. Some types incorporate armor clamp for use with armored cable.

Impedance: 50 ohms
Frequency range: DC–10 GHz.

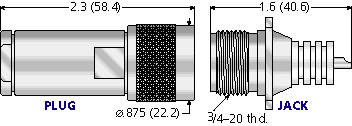

Dimensions in inches (millimeters).
Drawing is approximately 120% of actual size for clarity.
