Subminiature Bayonet, Snap-On, and Threaded Connectors

Subminiature, versatile connectors with four mating interfaces to suit varied applications:

Bayonet (2-stud): For quick mating and unmating; cannot be accidentally unmated by pulling on cable.

Bayonet (3-stud): For quick mating and unmating; three-stud design prevents rocking of mated connectors.

Snap-on: For quick mating and unmating with a straight push / pull.

Threaded: For secure mating; can be supplied with lockwire holes.

All are also available in twinaxial and triaxial versions.

Impedance: 50 ohms.
Frequency range: DC–1 GHz.

Dimensions in inches (millimeters).

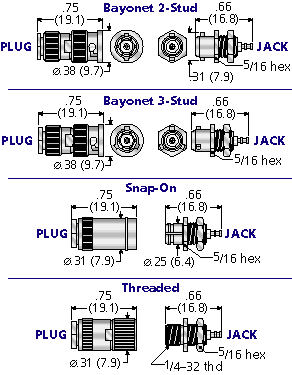

Drawing is approximately 120% of actual size for clarity.

Formerly designated RF-0700 and RF-3700 series connectors.

No online catalog information available at this time; please contact factory for product information.
