GHV Series Connectors

Large, high-voltage connectors with threaded mating.

Impedance: 50 ohms
Voltage rating: 25 KV DC.
Frequency range: DC–1GHz.

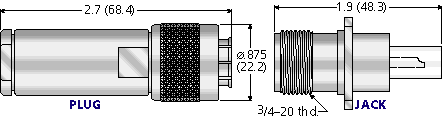

Dimensions in inches (millimeters).
Drawing is approximately 120% of actual size for clarity.

No online catalog information available at this time; please contact factory for product information.
